99 5109 40 04 | binder
Plug, 4 pole, solder connection, screw locking, straight, 99 5109 40 04
Unit Price (€ / pc.)
14.6370 € *
Available: 10 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
14.64 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6370 €
10 pcs.
12.8639 €
50 pcs.
12.0071 €
150 pcs.
11.4597 €
500 pcs.
10.8885 €
*incl. VAT plus shipping costs
Subject to prior sale

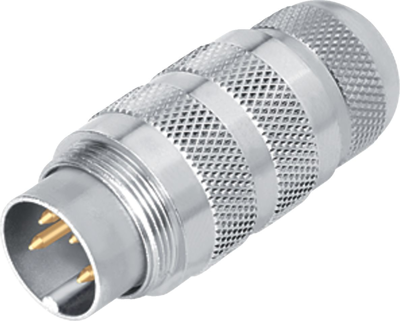

Male cable connector, 99-5109-40-04, Franz Binder
M16 IP67 Male connector, poles 4, 4.1-7.8 mm, unshielded, solder, IP67, UL, Short version
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 4 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 4.1 to 7.8 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
