99 5106 60 03 | binder

Jack, 3 pole, solder connection, screw locking, straight, 99 5106 60 03

Order No.: 70P2168
EAN: 4099891705145
MPN:
99 5106 60 03
Series: 423

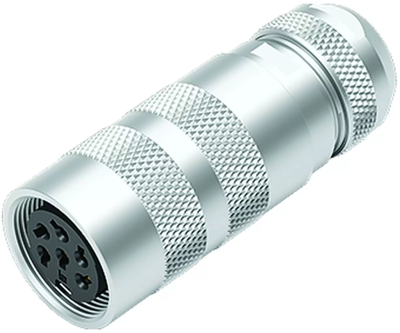

99 5106 60 03 binder Other Circular Connectors Image 1
99 5106 60 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.8500 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.85 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8500 €
10 pcs.
16.6124 €
50 pcs.
15.4343 €
100 pcs.
14.3633 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99 5106 60 03, binder

M16 IP67 Female cable connector, Contacts: 3 DIN, 4.1-7.8 mm, shieldable, solder, IP68.

Technical specifications
Version jack
Cable cross-section 0.75 mm²
Pin number 3 pole
Orientation straight
Contact connection solder connection
Type of locking screw locking
Cable diameter 4.1 to 7.8 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material CuZn
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
