99 5106 210 03 | binder
Jack, 3 pole, screw connection, screw locking, straight, 99 5106 210 03
Unit Price (€ / pc.)
21.9674 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.97 € *
Price list
Quantity
Price per unit*
1 pcs.
21.9674 €
10 pcs.
20.6465 €
50 pcs.
19.4089 €
100 pcs.
18.2308 €
*incl. VAT plus shipping costs
Subject to prior sale

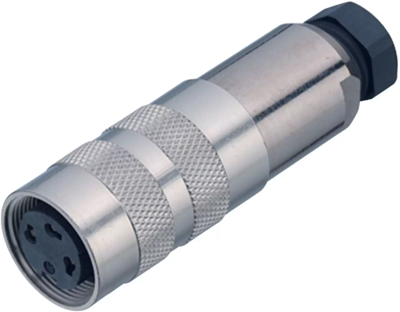

Female cable connector, 99 5106 210 03, binder
M16 IP67 Female cable connector, Contacts: 3 DIN, 4.0-6.0 mm, shieldable, screw clamp, IP67, UL.
Technical specifications
| Version | jack | |
| Cable cross-section | 0.25-1.5 mm² | |
| Pin number | 3 pole | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Type of locking | screw locking | |
| Cable diameter | 4 to 6 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | silver-plated | |
| Shell Material | CuZn |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
