99 5102 75 02 | binder

Angle coupling, 2 pole, solder connection, screw locking, angled, 99 5102 75 02

Order No.: 70P0107
EAN: 4099891693626
MPN:
99 5102 75 02
Series: 423
99 5102 75 02 binder Other Circular Connectors Image 1
99 5102 75 02 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.4807 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.48 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4807 €
10 pcs.
17.1836 €
50 pcs.
15.9817 €
100 pcs.
14.8631 €
*incl. VAT plus shipping costs
**Subject to prior sale

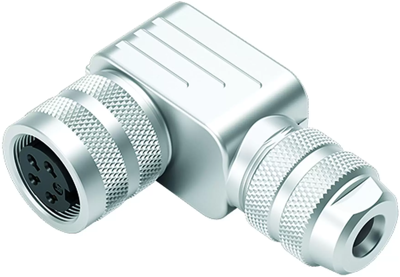

Female angled connector, 99 5102 75 02, binder

M16 IP67 Female angled connector, Contacts: 2, 4.0-6.0 mm, shieldable, solder, IP67, UL.

Technical specifications
Version angle coupling
Cable cross-section 0.75 mm²
Pin number 2 pole
Orientation angled
Contact connection solder connection
Type of locking screw locking
Cable diameter 4 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material CuZn
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
