99 4930 00 08 | binder

Jack, 8 pole, solder connection, push pull, straight, 99 4930 00 08

Order No.: 70P0321
EAN: 4099891695439
MPN:
99 4930 00 08
Series: 430

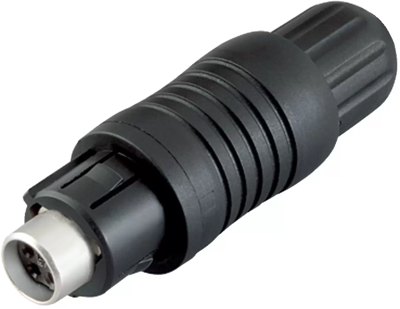

99 4930 00 08 binder Other Circular Connectors Image 1

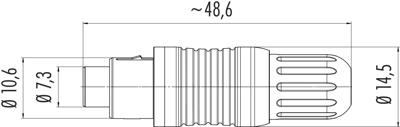

99 4930 00 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
28.4886 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
28.49 € *
Price list
Quantity
Price per unit*
1 pcs.
28.4886 €
10 pcs.
26.7750 €
25 pcs.
25.1685 €
50 pcs.
23.6453 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99 4930 00 08, binder

Push-Pull Female cable connector, Contacts: 8, 3.5-5.0 mm, shieldable, solder, IP67.

Technical specifications
Version jack
Cable cross-section 0.14 mm²
Pin number 8 pole
Orientation straight
Contact connection solder connection
Type of locking push pull
Cable diameter 3.5 to 5 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
