99 4929 00 08 | binder

Plug, 8 pole, solder connection, push pull, straight, 99 4929 00 08

Order No.: 70P0320
EAN: 4099891695422
MPN:
99 4929 00 08
Series: 430
99 4929 00 08 binder Other Circular Connectors Image 1
99 4929 00 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.7996 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
24.80 € *
Price list
Quantity
Price per unit*
1 pcs.
24.7996 €
10 pcs.
23.3121 €
50 pcs.
21.9198 €
100 pcs.
20.5751 €
*incl. VAT plus shipping costs
Subject to prior sale

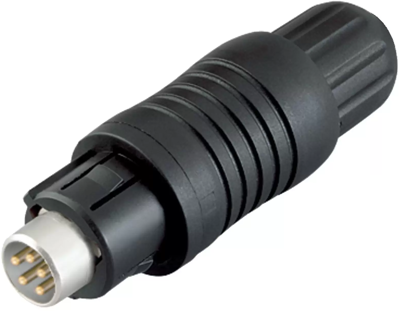

Male cable connector, 99 4929 00 08, binder

Push-Pull Male cable connector, Contacts: 8, 3.5-5.0 mm, shieldable, solder, IP67.

Technical specifications
Version plug
Cable cross-section 0.14 mm²
Pin number 8 pole
Orientation straight
Contact connection solder connection
Type of locking push pull
Cable diameter 3.5 to 5 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
