99 4926 00 07 | binder
Jack, 7 pole, solder connection, push pull, straight, 99 4926 00 07
Unit Price (€ / pc.)
22.5624 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
22.56 € *
Price list
Quantity
Price per unit*
1 pcs.
22.5624 €
10 pcs.
21.2058 €
50 pcs.
19.9325 €
100 pcs.
18.7306 €
*incl. VAT plus shipping costs
Subject to prior sale

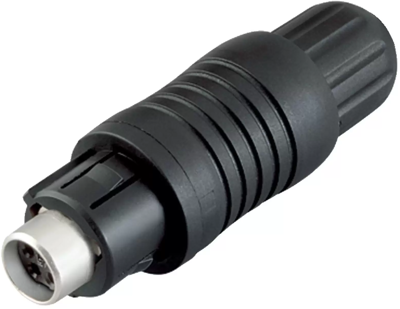

Female cable connector, 99 4926 00 07, binder
Push-Pull Female cable connector, Contacts: 7, 3.5-5.0 mm, shieldable, solder, IP67.
Technical specifications
| Version | jack | |
| Cable cross-section | 0.14 mm² | |
| Pin number | 7 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | push pull | |
| Cable diameter | 3.5 to 5 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
