99 4913 00 05 | binder
Plug, 5 pole, solder connection, push pull, straight, 99 4913 00 05
Unit Price (€ / pc.)
18.2665 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
18.27 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2665 €
10 pcs.
17.1598 €
50 pcs.
16.1364 €
100 pcs.
15.1606 €
*incl. VAT plus shipping costs
Subject to prior sale

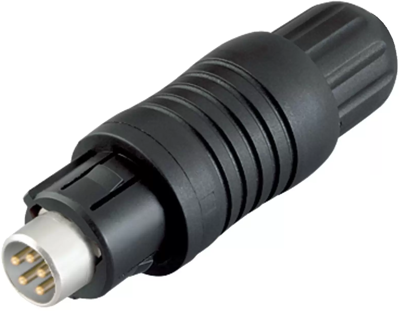

Male cable connector, 99 4913 00 05, binder
Push-Pull Male cable connector, Contacts: 5, 3.5-5.0 mm, shieldable, solder, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 5 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | push pull | |
| Cable diameter | 3.5 to 5 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
