99 4834 00 12 | binder

Jack, 12 pole, solder cup, push pull, straight, 99 4834 00 12

Order No.: 65F532
EAN: 4099889726169
MPN:
99 4834 00 12
Series: 440

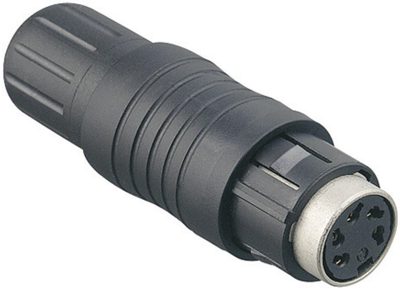

99 4834 00 12 binder Other Circular Connectors Image 1

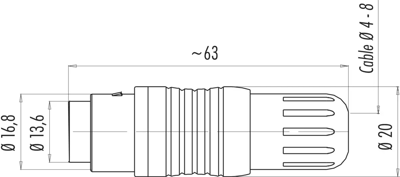

99 4834 00 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.8119 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
23.81 € *
Price list
Quantity
Price per unit*
1 pcs.
23.8119 €
10 pcs.
20.9678 €
50 pcs.
19.5398 €
150 pcs.
18.6830 €
500 pcs.
17.7191 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature circular connector with push-pull lock, type Binder 440.

With optional shielding and excellent EMC properties; Connection type: soldering. Terminal cross-section: max. 0.25 mm². Cable entry: 4.0 to 8.0 mm. Rated voltage: 60 V. Rated current (at +40 °C): 3,0 A. Contact resistance: < 3.0 mohm. Insulation resistance: > 10 Gohm. Degree of protection (IEC 60529): IP 67. Contact pin material: CuZn. Receptacle: CuSn. Finish: gold-plated. Cable connector housing: PA 66, glass fiber-reinforced. Flange connector: CuZn, nickel-plated. Operating temperatures: - 25 to +95 °C.

Female cable connectors.

Technical attributes (type, number of poles, rated voltage/rated current): 99-4834-00-12, 12-pole, 60 V/3.0 A

Technical specifications
Filter Property Value
Version jack
Cable cross-section 0.25 mm²
Pin number 12 pole
Orientation straight
Contact connection solder cup
Type of locking push pull
Cable diameter 4 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
