99 4833 00 12 | binder

Plug, 12 pole, solder cup, push pull, straight, 99 4833 00 12

Order No.: 65F512
EAN: 4099889726084
MPN:
99 4833 00 12
Series: 440
99 4833 00 12 binder Other Circular Connectors Image 1

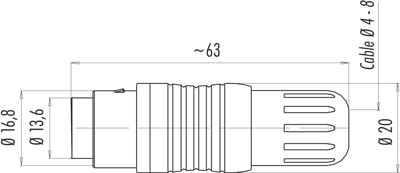

99 4833 00 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.8722 € *
Available: 40 pcs.
Available in 5 Days: 66 pcs. - if ordered today
Total Price:
21.87 € *
Price list
Quantity
Price per unit*
1 pcs.
21.8722 €
10 pcs.
20.3490 €
25 pcs.
18.7187 €
50 pcs.
17.0170 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature circular connector with push-pull lock, type Binder 440.

With optional shielding and excellent EMC properties; Connection type: soldering. Terminal cross-section: max. 0.25 mm². Cable entry: 4.0 to 8.0 mm. Rated voltage: 60 V. Rated current (at +40 °C): 3,0 A. Contact resistance: < 3.0 mohm. Insulation resistance: > 10 Gohm. Degree of protection (IEC 60529): IP 67. Contact pin material: CuZn. Receptacle: CuSn. Finish: gold-plated. Cable connector housing: PA 66, glass fiber-reinforced. Flange connector: CuZn, nickel-plated. Operating temperatures: - 25 to +95 °C.

Cable plug connectors.

Technical attributes (type, number of poles, rated voltage/rated current): 99-4833-00-12, 12-pole, 60 V/3.0 A

Technical specifications
Filter Property Value
Version plug
Cable cross-section 0.25 mm²
Pin number 12 pole
Orientation straight
Contact connection solder cup
Type of locking push pull
Cable diameter 4 to 8 mm
Assembly cable assembly
Additional parts unequipped
contact surface gold-plated
Shell Material PA
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
