99 4830 00 08 | binder

Jack, 8 pole, solder cup, push pull, straight, 99 4830 00 08

Order No.: 65F530
EAN: 4099889726152
MPN:
99 4830 00 08
Series: 440

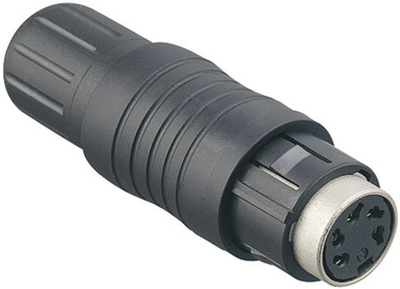

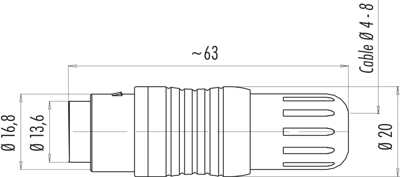

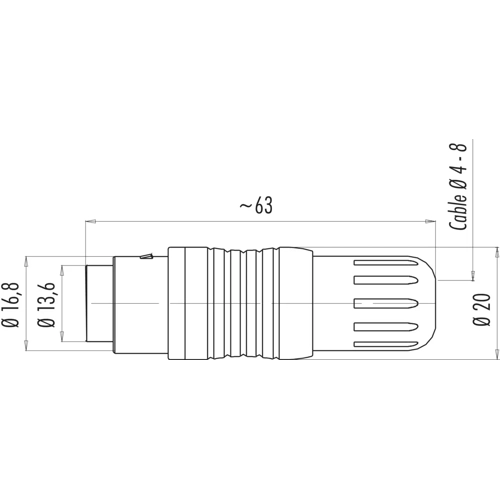

99 4830 00 08 binder Other Circular Connectors Image 1
99 4830 00 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
29.1074 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
29.11 € *
Price list
Quantity
Price per unit*
1 pcs.
29.1074 €
5 pcs.
27.3581 €
15 pcs.
26.3109 €
50 pcs.
25.1447 €
150 pcs.
24.0975 €
*incl. VAT plus shipping costs
**Subject to prior sale

Miniature circular connector with push-pull lock, type Binder 440.

With optional shielding and excellent EMC properties; Connection type: soldering. Terminal cross-section: max. 0.75 mm². Cable entry: 4.0 to 8.0 mm. Rated voltage: 60 V. Rated current (at +40 °C): 5,0 A. Contact resistance: < 3.0 mohm. Insulation resistance: > 10 Gohm. Degree of protection (IEC 60529): IP 67. Contact pin material: CuZn. Receptacle: CuSn. Finish: gold-plated. Cable connector housing: PA 66, glass fiber-reinforced. Flange connector: CuZn, nickel-plated. Operating temperatures: - 25 to +95 °C.

Female cable connectors.

Technical attributes (type, number of poles, rated voltage/rated current): 99-4830-00-08, 8-pole DIN, 60 V/5.0 A

Technical specifications
Version jack
Cable cross-section 0.75 mm²
Pin number 8 pole
Orientation straight
Contact connection solder cup
Type of locking push pull
Cable diameter 4 to 8 mm
Assembly cable assembly
Additional parts unequipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
