99 4805 00 03 | binder

Plug, 3 pole, solder cup, push pull, straight, 99 4805 00 03

Order No.: 65F500
EAN: 4099889726022
MPN:
99 4805 00 03
Series: 440

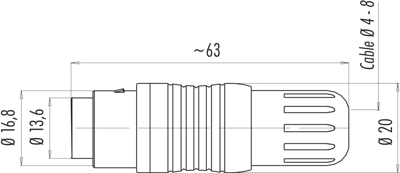

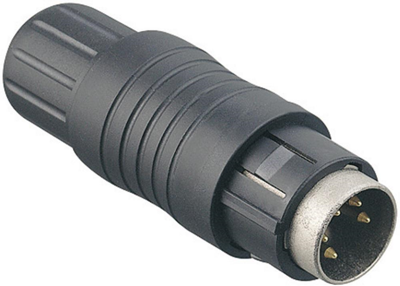

99 4805 00 03 binder Other Circular Connectors Image 1
99 4805 00 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.8611 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
19.86 € *
Price list
Quantity
Price per unit*
1 pcs.
19.8611 €
10 pcs.
17.4811 €
50 pcs.
16.2792 €
150 pcs.
15.5652 €
500 pcs.
14.7917 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature circular connector with push-pull lock, type Binder 440.

With optional shielding and excellent EMC properties; Connection type: soldering. Terminal cross-section: max. 0.75 mm². Cable entry: 4.0 to 8.0 mm. Rated voltage: 250 V. Rated current (at +40 °C): 7,0 A. Contact resistance: < 3.0 mohm. Insulation resistance: > 10 Gohm. Degree of protection (IEC 60529): IP 67. Contact pin material: CuZn. Receptacle: CuSn. Finish: gold-plated. Cable connector housing: PA 66, glass fiber-reinforced. Flange connector: CuZn, nickel-plated. Operating temperatures: - 25 to +95 °C.

Cable plug connectors.

Technical attributes (type, number of poles, rated voltage/rated current): 99-4805-00-03, 3-pole DIN, 250 V/7.0 A

Technical specifications
Filter Property Value
Version plug
Cable cross-section 0.75 mm²
Pin number 3 pole
Orientation straight
Contact connection solder cup
Type of locking push pull
Cable diameter 4 to 8 mm
Assembly cable assembly
Additional parts unequipped
contact surface gold-plated
Shell Material PA
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
