99 4638 20 06 | binder

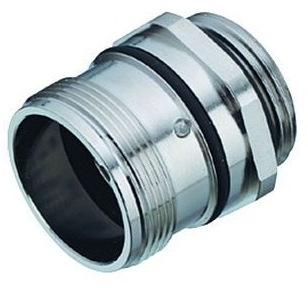

Panel socket, 6 pole, solder connection, screw locking, straight, 99 4638 20 06
Unit Price (€ / pc.)
22.6576 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
22.66 € *
Price list
Quantity
Price per unit*
1 pcs.
22.6576 €
10 pcs.
21.2891 €
50 pcs.
20.0158 €
100 pcs.
18.8139 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 99 4638 20 06, BINDER
M23 Female panel mount connector, Contacts: 6, unshielded, solder, IP67, central fixing.
Features
- Contact material: CuSn (Bronze)
- Degree of protection: IP67
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole | |
| Version | panel socket | |
| Assembly | panel mounting | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
