99 4638 00 06 | binder
Panel socket, 6 pole, solder connection, screw locking, straight, 99 4638 00 06
Unit Price (€ / pc.)
21.0392 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.04 € *
Price list
Quantity
Price per unit*
1 pcs.
21.0392 €
10 pcs.
19.7778 €
50 pcs.
18.5878 €
100 pcs.
17.4692 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 99-4638-00-06, BINDER

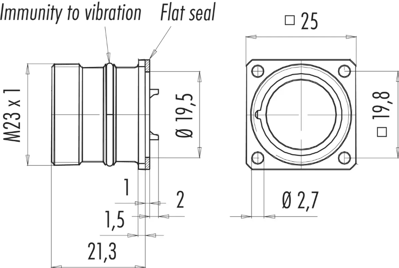

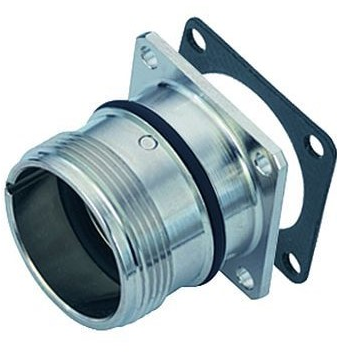

M23 Square female panel mount connector, Contacts: 6, unshielded, solder, IP67, front mounting.
Features
- Contact material: CuSn (Bronze)
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | panel socket | |
| Pin number | 6 pole | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Assembly | panel mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
