99 4624 00 16 | binder

Jack, 16 pole, solder connection, screw locking, straight, 99 4624 00 16

Order No.: 67F214
EAN: 4099889702316
MPN:
99 4624 00 16
Series: 623

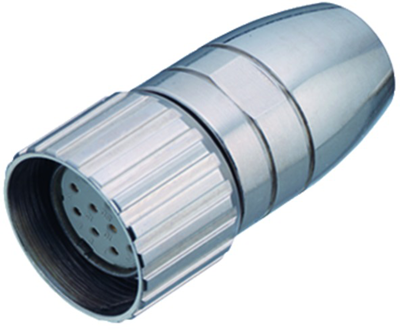

99 4624 00 16 binder Other Circular Connectors Image 1

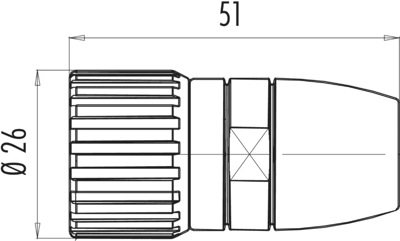

99 4624 00 16 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
37.1994 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
37.20 € *
Price list
Quantity
Price per unit*
1 pcs.
37.1994 €
5 pcs.
34.9860 €
15 pcs.
33.6413 €
50 pcs.
32.1419 €
150 pcs.
30.8091 €
*incl. VAT plus shipping costs
Subject to prior sale

Industrial circular connector, IP 67, type Binder 623.

With M 23 thread locking and Pg 9 cable bushing; Contacts: CuSn. Contact diameter: 1.0 mm. Finish: gold-plated. Cable connection: 1.0 mm². Contact carrier: PET to UL 94 V-0. Cable housing: nickel-plated brass. Flanged housing: zinc die-cast, nickel-plated. Cable outlet: 6.0 to 10 mm. Degree of protection in mated state (IEC 60529): IP 67. Rated voltage: 150 V. Test voltage: 1750 V. Rated current (40 °C): 8.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Operating temperatures: - 40 to +125 °C.

Female cable connectors, shielded, type 623.

With wrapping nut for screw lock.

Technical attributes (type, number of poles): 99-4624-00-16, 16pole

Technical specifications
Filter Property Value
Additional parts equipped
contact surface gold-plated
Orientation straight
Version jack
Contact connection solder connection
Type of locking screw locking
Assembly cable assembly
Pin number 16 pole
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
