99 4618 00 16 | binder

Jack, 16 pole, solder connection, screw locking, straight, 99 4618 00 16

Order No.: 67F207
EAN: 4099889702286
MPN:
99 4618 00 16
Series: 623

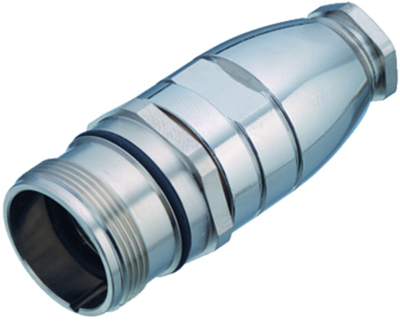

99 4618 00 16 binder Other Circular Connectors Image 1

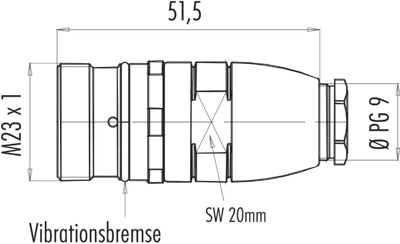

99 4618 00 16 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
31.4874 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
31.49 € *
Price list
Quantity
Price per unit*
1 pcs.
31.4874 €
10 pcs.
29.5953 €
25 pcs.
27.8222 €
50 pcs.
26.1562 €
*incl. VAT plus shipping costs
Subject to prior sale

Industrial circular connector, IP 67, type Binder 623.

With M 23 thread locking and Pg 9 cable bushing; Contacts: CuSn. Contact diameter: 1.0 mm. Finish: gold-plated. Cable connection: 1.0 mm². Contact carrier: PET to UL 94 V-0. Cable housing: nickel-plated brass. Flanged housing: zinc die-cast, nickel-plated. Cable outlet: 6.0 to 10 mm. Degree of protection in mated state (IEC 60529): IP 67. Rated voltage: 150 V. Test voltage: 1750 V. Rated current (40 °C): 8.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Operating temperatures: - 40 to +125 °C.

Female cable connectors, non-shielded, type 623.

With fixed thread for screw lock..

Technical attributes (type, number of poles): 99-4618-00-16, 16pole

Technical specifications
Filter Property Value
Version jack
Pin number 16 pole
Additional parts equipped
Contact connection solder connection
Type of locking screw locking
contact surface gold-plated
Orientation straight
Assembly cable assembly
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
