99 4611 00 16 | binder

Panel plug, 16 pole, solder connection, screw locking, straight, 99 4611 00 16

Order No.: 67F284
EAN: 4099889702439
MPN:
99 4611 00 16
Series: 623

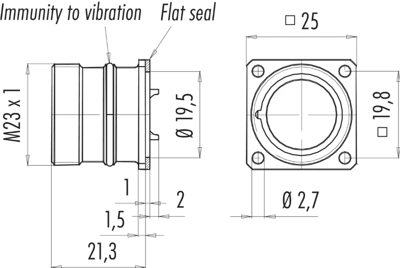

99 4611 00 16 binder Other Circular Connectors Image 1
99 4611 00 16 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
27.7865 € *
Available: 10 pcs.
Total Price:
27.79 € *
Price list
Quantity
Price per unit*
1 pcs.
27.7865 €
5 pcs.
26.1086 €
15 pcs.
25.1209 €
50 pcs.
24.0023 €
150 pcs.
23.0027 €
*incl. VAT plus shipping costs
Subject to prior sale

Male panel mount connector, front mount, type 623.

With M 23 thread locking.

Number of poles: 16-pole

Contacts: male CuZn

Contact diameter: 1.0 mm

Finish: gold-plated

Cable connection: solder contacts for 1.0 mm²

Contact carrier: PET to UL 94 V-0

Cable housing: nickel-plated brass

Flanged housing: zinc die-cast, nickel-plated

Degree of protection in mated state (IEC 60529): IP 67

Rated voltage: 150 V

Test voltage: 1750 V

Rated current (40 °C): 8,0 A

Contact resistance: max. 3.0 mohm

Insulation resistance: at least 10 Gohm

Operating temperatures: - 40 to +125 °C

Type: 99-4611-00-16

Technical specifications
Filter Property Value
Version panel plug
Pin number 16 pole
Additional parts equipped
Contact connection solder connection
Type of locking screw locking
contact surface gold-plated
Orientation straight
Assembly front mounting
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
