99 4609 00 16 | binder

Plug, 16 pole, solder connection, screw locking, straight, 99 4609 00 16

Order No.: 67F184
EAN: 4099889702156
MPN:
99 4609 00 16
Series: 623

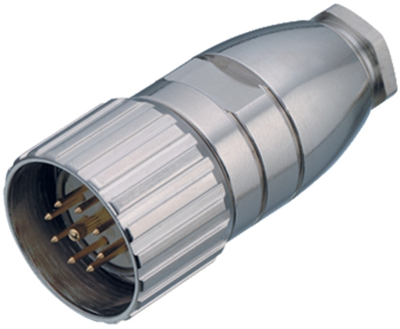

99 4609 00 16 binder Other Circular Connectors Image 1

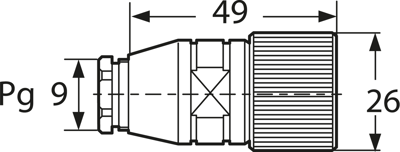

99 4609 00 16 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.0753 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
20.08 € *
Price list
Quantity
Price per unit*
1 pcs.
20.0753 €
5 pcs.
18.8615 €
15 pcs.
18.1356 €
*incl. VAT plus shipping costs
**Subject to prior sale

Industrial circular connector, IP 67, type Binder 623.

With M 23 thread locking and Pg 9 cable bushing; Contacts: CuZn. Contact diameter: 1.0 mm. Finish: gold-plated. Cable connection: 1.0 mm². Contact carrier: PET to UL 94 V-0. Cable housing: nickel-plated brass. Flanged housing: zinc die-cast, nickel-plated. Cable outlet: 6.0 to 10 mm. Degree of protection in mated state (IEC 60529): IP 67.Rated voltage: 150 V. Test voltage: 1750 V. Rated current (40 °C): 8.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Operating temperatures: - 40 to +125 °C.

Cable plug connectors, non-shielded, type 623.

With wrapping nut for screw lock.

Technical attributes (type, number of poles): 99-4609-00-16, 16pole

Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection solder connection
Pin number 16 pole
Version plug
Additional parts equipped
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
