99 4607 80 12 | binder
Panel plug, 12 pole, solder connection, screw locking, straight, 99 4607 80 12
No longer available from manufacturer
Unit Price (€ / pc.)
25.6207 € *
Available: 4 pcs.
Total Price:
25.62 € *
Price list
Quantity
Price per unit*
1 pcs.
25.6207 €
10 pcs.
24.3355 €
50 pcs.
23.1217 €
*incl. VAT plus shipping costs
Subject to prior sale

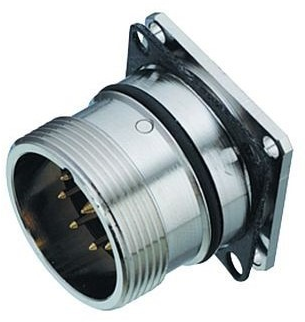

Power connector, 99-4607-80-12, BINDER

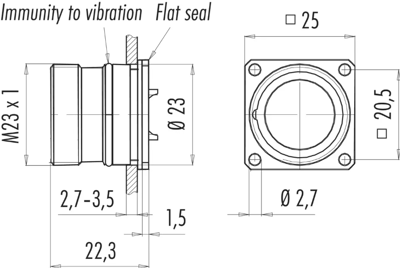

M23 Square male panel mount connector, Contacts: 12, unshielded, solder, IP67, back mounting.
Features
- Contact material: CuZn
- Degree of protection: IP67
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Assembly | panel mounting | |
| Type of locking | screw locking | |
| Pin number | 12 pole | |
| Version | panel plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
