99 4607 20 12 | binder

Panel socket, 12 pole, solder connection, screw locking, straight, 99 4607 20 12

Order No.: 66P4253
EAN: 4099889729641
MPN:
99 4607 20 12
Series: 623

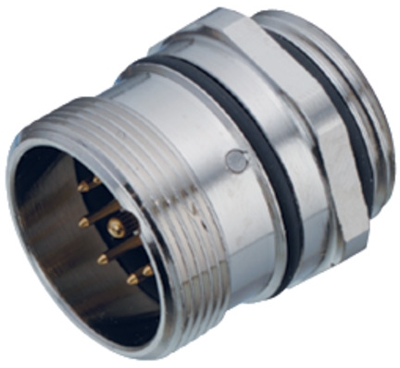

99 4607 20 12 binder Other Circular Connectors Image 1

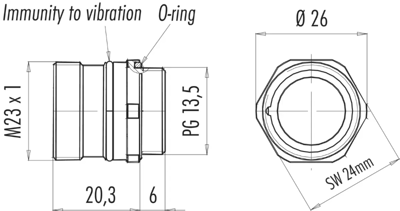

99 4607 20 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.8127 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.81 € *
Price list
Quantity
Price per unit*
1 pcs.
21.8127 €
10 pcs.
20.5156 €
50 pcs.
19.2780 €
100 pcs.
18.1237 €
*incl. VAT plus shipping costs
Subject to prior sale

Male panel mount, 99-4607-20-12, Binder

Male panel mount connector

Technical specifications
Filter Property Value
Version panel socket
Pin number 12 pole
Shell Material copper
Additional parts unequipped
Contact connection solder connection
Type of locking screw locking
contact surface gold-plated
Cable cross-section 1.0 mm²
Orientation straight
Assembly cable assembly
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
