99 4606 70 12 | binder
Angle coupling, 12 pole, solder connection, screw locking, angled, 99 4606 70 12
Unit Price (€ / pc.)
44.9701 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
44.97 € *
Price list
Quantity
Price per unit*
1 pcs.
44.9701 €
10 pcs.
42.7210 €
25 pcs.
40.1625 €
50 pcs.
37.3541 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 99-4606-70-12, BINDER

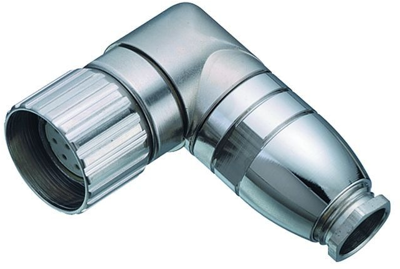

M23 Female angled connector, Contacts: 12, 6.0-10.0 mm, unshielded, solder, IP67.
Features
- Contact material: CuSn (Bronze)
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Contact connection | solder connection | |
| Pin number | 12 pole | |
| Version | angle coupling | |
| Orientation | angled |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
