99 4604 00 09 | binder
Panel socket, 9 pole, solder connection, screw locking, straight, 99 4604 00 09
Unit Price (€ / pc.)
26.0967 € *
Available: 13 pcs.
Leadtime: On Request **
Total Price:
26.10 € *
Price list
Quantity
Price per unit*
1 pcs.
26.0967 €
10 pcs.
22.9670 €
50 pcs.
21.3962 €
150 pcs.
20.4561 €
500 pcs.
19.3970 €
*incl. VAT plus shipping costs
**Subject to prior sale

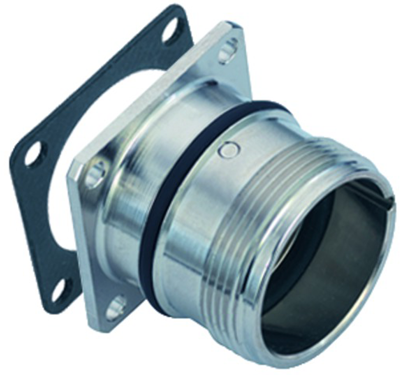

Socket, 99-4604-00-09, BINDER
M23 Square female panel mount connector, Contacts: 9, unshielded, solder, IP67, front mounting.
Features
- Degree of protection: IP67
- Pollution degree: 2
- Overvoltage category: II
- Contact material: CuZn
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | front mounting | |
| Contact connection | solder connection | |
| Pin number | 9 pole | |
| Version | panel socket | |
| Additional parts | equipped | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
