99 4603 00 09 | binder
Panel plug, 9 pole, solder connection, screw locking, straight, 99 4603 00 09
No longer available from manufacturer
Unit Price (€ / pc.)
19.5517 € *
Available: 17 pcs.
Total Price:
19.55 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5517 €
10 pcs.
17.2074 €
50 pcs.
16.0531 €
150 pcs.
15.3391 €
500 pcs.
14.5656 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 99-4603-00-09, BINDER

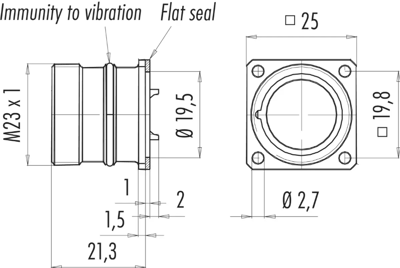

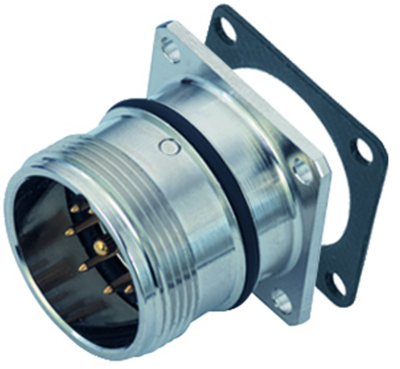

M23 Square male panel mount connector, Contacts: 9, unshielded, solder, IP67, front mounting.
Features
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Contact connection | solder connection | |
| Pin number | 9 pole | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Version | panel plug | |
| Assembly | front mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
