99 4226 110 07 | binder

Jack, 6 pole + PE, solder connection, screw locking, straight, 99 4226 110 07

Order No.: 70P0888
EAN: 4099891700584
MPN:
99 4226 110 07
Series: 693

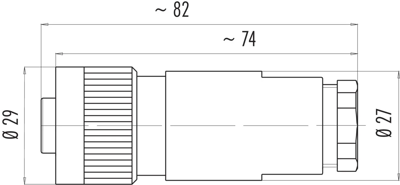

99 4226 110 07 binder Other Circular Connectors Image 1
99 4226 110 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.8504 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.85 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8504 €
10 pcs.
15.6842 €
50 pcs.
14.5775 €
100 pcs.
13.5541 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female cable connector, 99 4226 110 07, binder

RD24 Female cable connector, Contacts: 6+PE, 8.0-10.0 mm, unshielded, solder, IP67, UL, ESTI+, VDE, PG 11.

Technical specifications
Cable diameter 8 to 10 mm
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection solder connection
Cable cross-section 0.75 mm²
Pin number 6 pole + PE
Version jack
Additional parts equipped
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
