99 4225 300 07 | binder

Plug, 6 pole + PE, solder connection, screw locking, straight, 99 4225 300 07

Order No.: 66P4201
EAN: 4099889701548
MPN:
99 4225 300 07
Series: 693

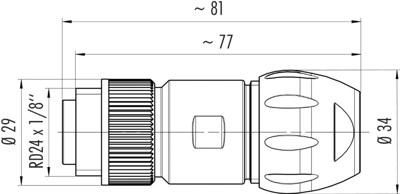

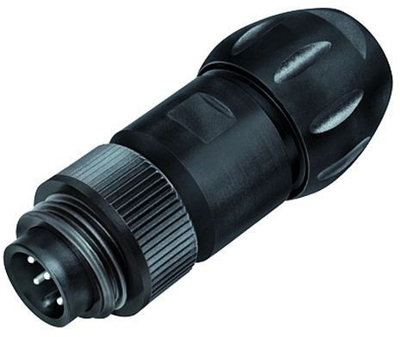

99 4225 300 07 binder Other Circular Connectors Image 1
99 4225 300 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.8754 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.88 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8754 €
10 pcs.
12.8996 €
50 pcs.
12.0190 €
100 pcs.
11.1622 €
*incl. VAT plus shipping costs
Subject to prior sale

Power connector, 99-4225-300-07, BINDER

RD24 Male cable connector, Contacts: 6+PE, 7.0-17.0 mm, unshielded, solder, IP67, UL, ESTI+, VDE, Vario.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 3
  • Overvoltage category: III
Technical specifications
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection solder connection
Pin number 6 pole + PE
Version plug
Orientation straight
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
