99 4225 210 07 | binder

Angle plug, 6 pole + PE, solder connection, screw locking, angled, 99 4225 210 07

Order No.: 70P0886
EAN: 4099891700560
MPN:
99 4225 210 07
Series: 693

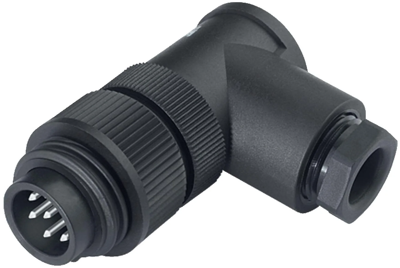

99 4225 210 07 binder Other Circular Connectors Image 1

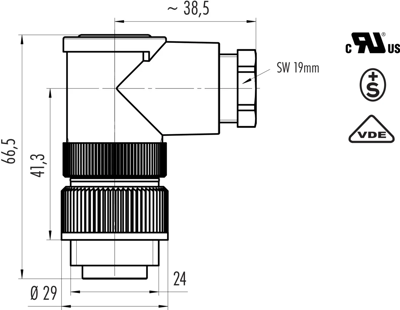

99 4225 210 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.2899 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
19.29 € *
Price list
Quantity
Price per unit*
1 pcs.
19.2899 €
10 pcs.
18.1356 €
50 pcs.
17.0527 €
100 pcs.
16.0293 €
*incl. VAT plus shipping costs
Subject to prior sale

Male angled connector, 99 4225 210 07, binder

RD24 Male angled connector, Contacts: 6+PE, 8.0-10.0 mm, unshielded, solder, IP67, UL, ESTI+, VDE, PG 11.

Technical specifications
Cable diameter 8 to 10 mm
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection solder connection
Cable cross-section 0.75 mm²
Pin number 6 pole + PE
Version angle plug
Additional parts equipped
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
