99 4225 160 07 | binder

Plug, 6 pole + PE, solder cup, screw locking, straight, 99 4225 160 07

Order No.: 25K5547
EAN: 4099889708028
MPN:
99 4225 160 07
Series: 693

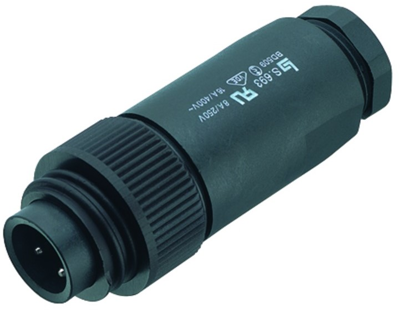

99 4225 160 07 binder Other Circular Connectors Image 1

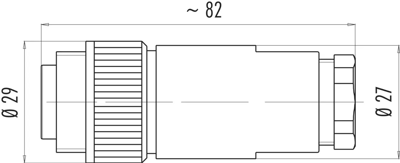

99 4225 160 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.0777 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
14.08 € *
Price list
Quantity
Price per unit*
1 pcs.
14.0777 €
10 pcs.
13.1019 €
50 pcs.
12.1737 €
100 pcs.
10.9599 €
*incl. VAT plus shipping costs
**Subject to prior sale

Connector for TEX 120, type Binder 99-422.

Technical attributes (type, output power, rated output voltage, output current): 99-4225-160-07, plug, 7-pole, DC output

Technical specifications
Version plug
Cable cross-section 0.75 mm²
Pin number 6 pole + PE
Orientation straight
Contact connection solder cup
Type of locking screw locking
Cable diameter 12 to 14 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material PBT
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
