99 4225 14 07 | binder

Plug, 6 pole + PE, solder cup, screw locking, straight, 99 4225 14 07

Order No.: 67F9936
EAN: 4099889733358
MPN:
99 4225 14 07
Series: 693

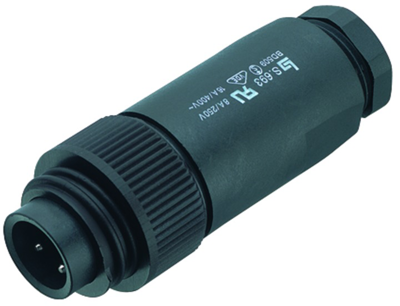

99 4225 14 07 binder Other Circular Connectors Image 1

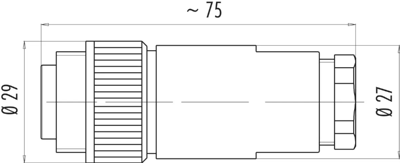

99 4225 14 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.8873 € *
Available: 28 pcs.
Available in 5 Days: 100 pcs.
Leadtime: On Request **
Total Price:
13.89 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8873 €
10 pcs.
12.9234 €
50 pcs.
12.0190 €
100 pcs.
10.8171 €
*incl. VAT plus shipping costs
**Subject to prior sale

Connector for automation technology, type Binder 693.

Robust design; Male contact: CuZn. Contact finish: silver-plated. Cable connection: solder terminals max. 0.75 mm². Contact carrier and housing: PBT in accordance with UL 94 V-0. Housing protection class: IP 67. Cable screw coupling: Pg 13.5. Rated voltage: 250 V. Test voltage: 4800 V. Rated current (40 °C): 10 A. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +100 °C. Certifications: VDE, UL, SEV.

Cable plug connectors

type: 99-4225-14-07

Technical specifications
Version plug
Cable cross-section 0.75 mm²
Pin number 6 pole + PE
Orientation straight
Contact connection solder cup
Type of locking screw locking
Cable diameter 10 to 12 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material PBT
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
