99 4218 300 07 | binder
Jack, 6 pole + PE, screw connection, screw locking, straight, 99 4218 300 07
Unit Price (€ / pc.)
25.0138 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
25.01 € *
Price list
Quantity
Price per unit*
1 pcs.
25.0138 €
10 pcs.
22.0150 €
50 pcs.
20.5156 €
150 pcs.
19.6112 €
500 pcs.
18.6235 €
*incl. VAT plus shipping costs
Subject to prior sale

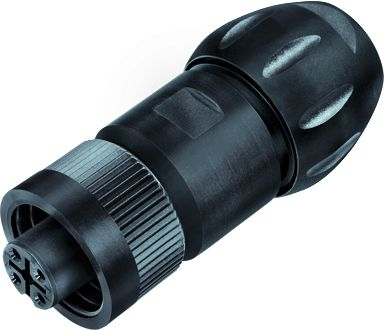

Female cable connector, 99-4218-300-07, Franz Binder
RD24 Female connector, poles 6+PE, 7.0-17.0 mm, unshielded, screw clamp, IP67, UL, ESTI+, VDE, Vario
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole + PE | |
| Shell Material | PBT | |
| Cable cross-section | 1.5 mm² | |
| Version | jack | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Cable diameter | 7 to 17 mm | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
