99 4217 215 07 | binder

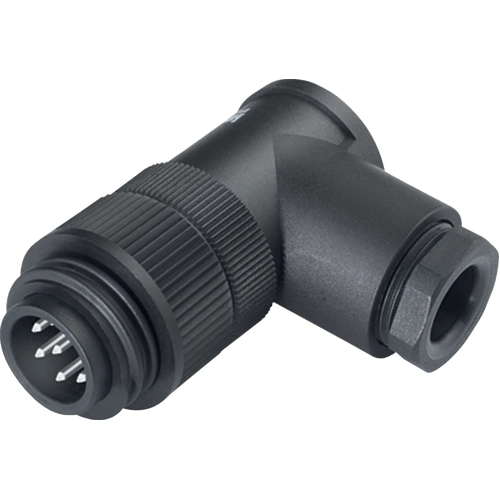

Angle plug, 6 pole + PE, screw connection, screw locking, angled, 99 4217 215 07

Order No.: 66P4178
EAN: 4099879118561
MPN:
99 4217 215 07
Series: 693
99 4217 215 07 binder Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
16.9932 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
16.99 € *
Price list
Quantity
Price per unit*
1 pcs.
16.9932 €
10 pcs.
15.8984 €
50 pcs.
12.4474 €
100 pcs.
11.6501 €
*incl. VAT plus shipping costs
Subject to prior sale

Male angled connector, 99-4217-215-07, Franz Binder

RD24 Male connector, poles 6+PE, 10.0-12.0 mm, unshielded, screw clamp, , UL, ESTI+, VDE, PG 13.5

Technical specifications
Filter Property Value
Contact connection screw connection
contact surface silver-plated
Assembly cable assembly
Shell Material PBT
Cable diameter 10 to 12 mm
Orientation angled
Pin number 6 pole + PE
Version angle plug
Type of locking screw locking
Cable cross-section 1.5 mm²
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
