99 4202 300 07 | binder

Jack, 6 pole + PE, crimp connection, screw locking, straight, 99 4202 300 07

Order No.: 70P0878
EAN: 4099891700485
MPN:
99 4202 300 07
Series: 693

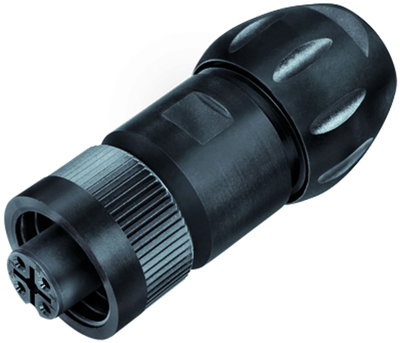

99 4202 300 07 binder Other Circular Connectors Image 1

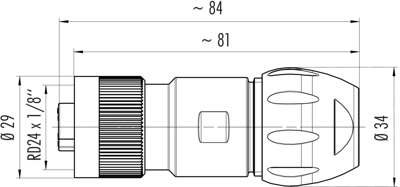

99 4202 300 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.8171 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.82 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8171 €
10 pcs.
10.0674 €
50 pcs.
9.3534 €
100 pcs.
8.4133 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female cable connector, 99 4202 300 07, binder

RD24 Female cable connector, Contacts: 6+PE, 7.0-17.0 mm, unshielded, crimping, IP67, UL, ESTI+, VDE, Vario.

Technical specifications
Cable diameter 7 to 17 mm
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection crimp connection
Pin number 6 pole + PE
Version jack
Additional parts unequipped
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
