99 4202 215 07 | binder

Angle coupling, 6 pole + PE, crimp connection, screw locking, angled, 99 4202 215 07

Order No.: 70P0877
EAN: 4099891700478
MPN:
99 4202 215 07
Series: 693

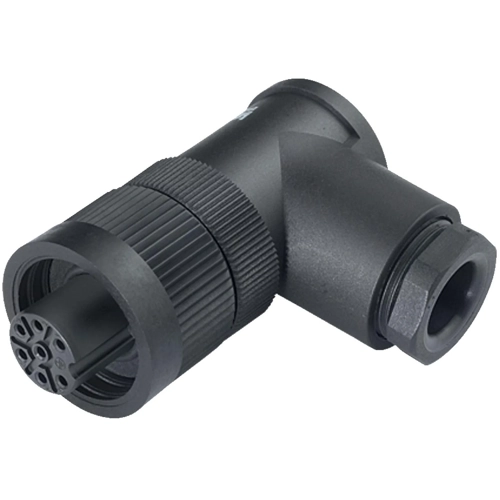

99 4202 215 07 binder Other Circular Connectors Image 1
99 4202 215 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.3875 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.39 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3875 €
10 pcs.
12.4474 €
50 pcs.
11.5668 €
100 pcs.
10.4125 €
*incl. VAT plus shipping costs
Subject to prior sale

Female angled connector, 99 4202 215 07, binder

RD24 Female angled connector, Contacts: 6+PE, 10.0-12.0 mm, unshielded, crimping, IP67, UL, ESTI+, VDE, PG 13.5.

Technical specifications
Cable diameter 10 to 12 mm
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection crimp connection
Pin number 6 pole + PE
Version angle coupling
Additional parts unequipped
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
