99 4201 215 07 | binder

Angle plug, 6 pole + PE, crimp connection, screw locking, angled, 99 4201 215 07

Order No.: 70P0871
EAN: 4099891700416
MPN:
99 4201 215 07
Series: 693
99 4201 215 07 binder Other Circular Connectors Image 1
99 4201 215 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.0305 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
13.03 € *
Price list
Quantity
Price per unit*
1 pcs.
13.0305 €
10 pcs.
12.1261 €
50 pcs.
11.2812 €
100 pcs.
10.1388 €
*incl. VAT plus shipping costs
Subject to prior sale

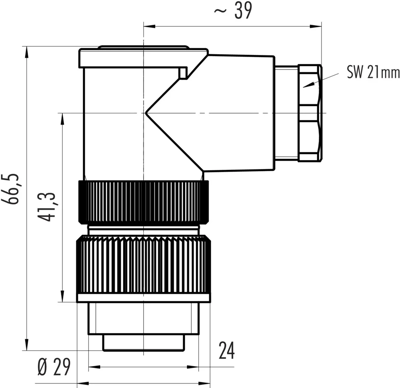

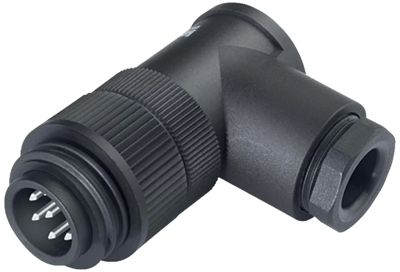

Male angled connector, 99 4201 215 07, binder

RD24 Male angled connector, Contacts: 6+PE, 10.0-12.0 mm, unshielded, crimping, IP67, UL, ESTI+, VDE, PG 13.5.

Technical specifications
Filter Property Value
Contact connection crimp connection
Shell Material PA
Cable diameter 10 to 12 mm
Orientation angled
Assembly cable assembly
Additional parts unequipped
Version angle plug
Pin number 6 pole + PE
Type of locking screw locking
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
