99 4201 00 07 | binder
Plug, 6 pole + PE, crimp connection, screw locking, straight, 99 4201 00 07
Unit Price (€ / pc.)
9.1273 € *
Available: 1 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
9.13 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1273 €
10 pcs.
8.0325 €
100 pcs.
7.0567 €
250 pcs.
6.7711 €
1000 pcs.
6.3308 €
*incl. VAT plus shipping costs
Subject to prior sale

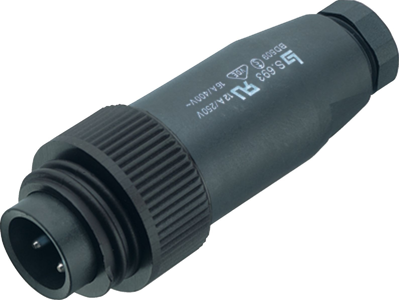

Male cable connector, 99-4201-00-07, Franz Binder
RD24 Male connector, poles 6+PE, 6.0-8.0 mm, unshielded, crimping , IP67, UL, ESTI+, VDE, PG 9
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole + PE | |
| Shell Material | PBT | |
| Version | plug | |
| Assembly | cable assembly | |
| Cable diameter | 6 to 8 mm | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
