99 2582 00 07 | binder

Jack, 7 pole, solder connection, screw locking, straight, 99 2582 00 07

Order No.: 70P0500
EAN: 4099891697198
MPN:
99 2582 00 07
Series: 581

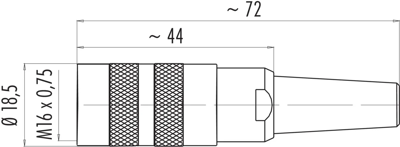

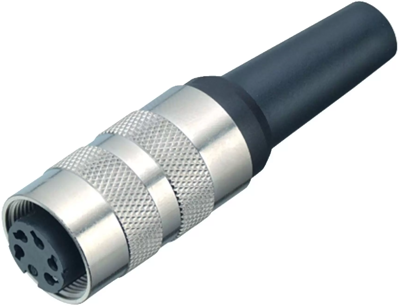

99 2582 00 07 binder Other Circular Connectors Image 1
99 2582 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.5545 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
12.55 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5545 €
10 pcs.
11.6739 €
50 pcs.
10.8528 €
100 pcs.
9.7699 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99 2582 00 07, binder

M16 IP40 Female cable connector, Contacts: 7 DIN, 4.0-6.0 mm, shieldable, solder, IP40.

Technical specifications
Filter Property Value
Version jack
Orientation straight
Pin number 7 pole
Cable cross-section 0.75 mm²
Additional parts equipped
Contact connection solder connection
Cable diameter 4 to 6 mm
contact surface silver-plated
Assembly cable assembly
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
