99 2445 23 05 | binder

Plug, 4 pole + PE, screw connection, screw locking, straight, 99 2445 23 05

Order No.: 70P2164
EAN: 4099891705107
MPN:
99 2445 23 05
Series: 820

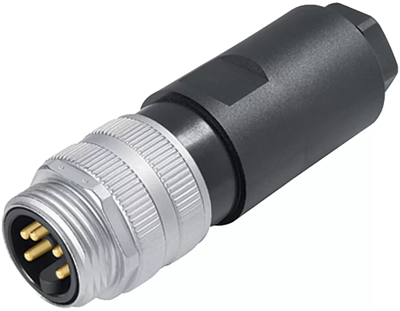

99 2445 23 05 binder Other Circular Connectors Image 1

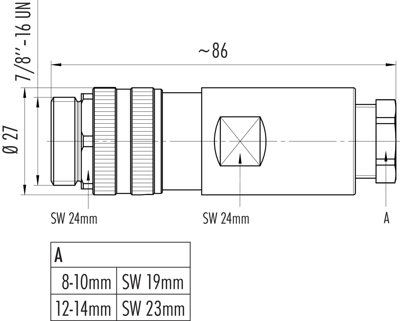

99 2445 23 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
31.2732 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
31.27 € *
Price list
Quantity
Price per unit*
1 pcs.
31.2732 €
10 pcs.
29.3930 €
25 pcs.
27.3343 €
50 pcs.
25.4184 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 2445 23 05, binder

7/8" Male cable connector, Contacts: 4+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL, VDE.

Technical specifications
Version plug
Cable cross-section 2.5 mm²
Pin number 4 pole + PE
Orientation straight
Contact connection screw connection
Type of locking screw locking
Cable diameter 8 to 10 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PBT
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
