99 2444 72 05 | binder
Angle coupling, 4 pole + PE, screw connection, screw locking, angled, 99 2444 72 05
Unit Price (€ / pc.)
28.3815 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
28.38 € *
Price list
Quantity
Price per unit*
1 pcs.
28.3815 €
10 pcs.
26.6679 €
25 pcs.
25.0614 €
50 pcs.
23.5739 €
*incl. VAT plus shipping costs
Subject to prior sale

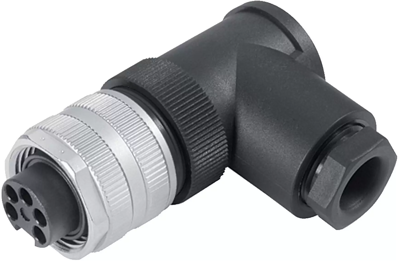

Female angled connector, 99 2444 72 05, binder
7/8" Female angled connector, Contacts: 4+PE, 10.0-12.0 mm, unshielded, screw clamp, IP67, UL, VDE.
Technical specifications
| Version | angle coupling | |
| Cable cross-section | 1.5 mm² | |
| Pin number | 4 pole + PE | |
| Orientation | angled | |
| Contact connection | screw connection | |
| Type of locking | screw locking | |
| Cable diameter | 10 to 12 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PBT |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
