99 2444 43 05 | binder

Jack, 4 pole + PE, screw connection, screw locking, straight, 99 2444 43 05

Order No.: 66P4000
EAN: 4099879116383
MPN:
99 2444 43 05
Series: 820

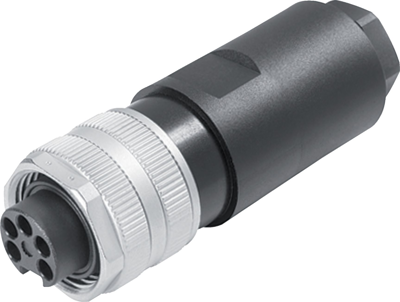

99 2444 43 05 binder Other Circular Connectors Image 1

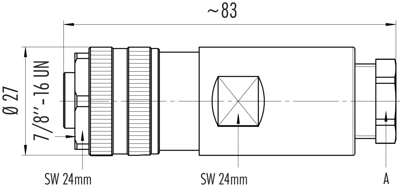

99 2444 43 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
42.1736 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
42.17 € *
Price list
Quantity
Price per unit*
1 pcs.
42.1736 €
5 pcs.
39.6508 €
15 pcs.
38.1395 €
50 pcs.
36.4497 €
150 pcs.
34.9265 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99-2444-43-05, Franz Binder

7/8" Female connector, poles 4+PE, 12.0-14.0 mm, unshielded, screw clamp, IP67, UL, VDE

Technical specifications
Orientation straight
Pin number 4 pole + PE
Type of locking screw locking
Contact connection screw connection
Assembly cable assembly
Version jack
contact surface gold-plated
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
