99 2444 42 05 | binder

Jack, 4 pole + PE, screw connection, screw locking, straight, 99 2444 42 05

Order No.: 70P2070
EAN: 4099891704742
MPN:
99 2444 42 05
Series: 820
99 2444 42 05 binder Other Circular Connectors Image 1
99 2444 42 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
26.5251 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
26.53 € *
Price list
Quantity
Price per unit*
1 pcs.
26.5251 €
10 pcs.
24.9305 €
25 pcs.
23.4430 €
50 pcs.
22.0269 €
*incl. VAT plus shipping costs
Subject to prior sale

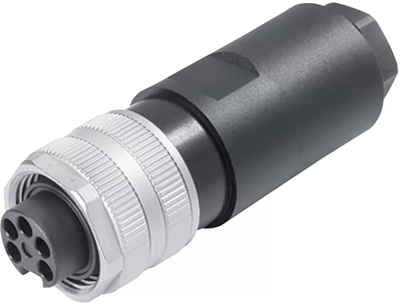

Female cable connector, 99 2444 42 05, binder

7/8" Female cable connector, Contacts: 4+PE, 12.0-14.0 mm, unshielded, screw clamp, IP67, UL, VDE.

Technical specifications
Version jack
Cable cross-section 1.5 mm²
Pin number 4 pole + PE
Orientation straight
Contact connection screw connection
Type of locking screw locking
Cable diameter 12 to 14 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PBT
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
