99 2443 52 04 | binder

Angle plug, 3 pole + PE, screw connection, screw locking, angled, 99 2443 52 04

Order No.: 70P2065
EAN: 4099891704698
MPN:
99 2443 52 04
Series: 820

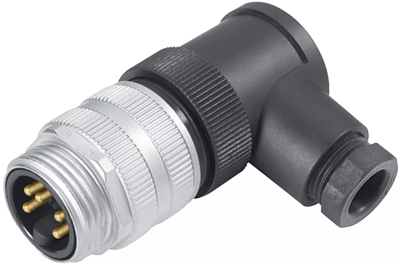

99 2443 52 04 binder Other Circular Connectors Image 1

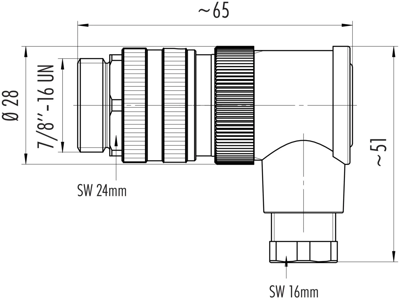

99 2443 52 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
25.0971 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
25.10 € *
Price list
Quantity
Price per unit*
1 pcs.
25.0971 €
10 pcs.
23.5858 €
25 pcs.
22.1816 €
50 pcs.
20.8369 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male angled connector, 99 2443 52 04, binder

7/8" Male angled connector, Contacts: 3+PE, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL, VDE.

Technical specifications
Version angle plug
Cable cross-section 1.5 mm²
Pin number 3 pole + PE
Orientation angled
Contact connection screw connection
Type of locking screw locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PBT
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
