99 2443 32 04 | binder
Plug, 3 pole + PE, screw connection, screw locking, straight, 99 2443 32 04
Unit Price (€ / pc.)
23.2764 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
23.28 € *
Price list
Quantity
Price per unit*
1 pcs.
23.2764 €
10 pcs.
21.8841 €
50 pcs.
20.5513 €
100 pcs.
19.3137 €
*incl. VAT plus shipping costs
Subject to prior sale

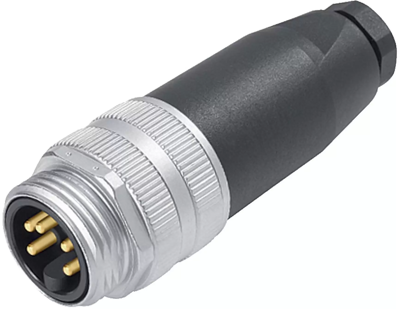

Male cable connector, 99 2443 32 04, binder
7/8" Male cable connector, Contacts: 3+PE, 10.0-12.0 mm, unshielded, screw clamp, IP67, UL, VDE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 1.5 mm² | |
| Pin number | 3 pole + PE | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Type of locking | screw locking | |
| Cable diameter | 10 to 12 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PBT |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
