99 2443 21 04 | binder
Plug, 3 pole + PE, screw connection, screw locking, straight, 99 2443 21 04
Unit Price (€ / pc.)
23.2764 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
23.28 € *
Price list
Quantity
Price per unit*
1 pcs.
23.2764 €
10 pcs.
21.8841 €
50 pcs.
20.5513 €
100 pcs.
19.3137 €
*incl. VAT plus shipping costs
Subject to prior sale

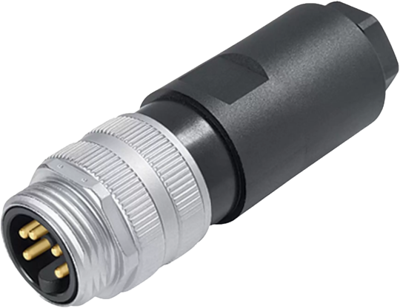

7/8" male cable connector, 99 2443 21 04, binder
Male cable connector, Contacts: 3+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL, VDE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole + PE | |
| Shell Material | PBT | |
| Cable cross-section | 1.5 mm² | |
| Version | plug | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Cable diameter | 8 to 10 mm | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
