99 2442 42 04 | binder

Jack, 3 pole + PE, screw connection, screw locking, straight, 99 2442 42 04

Order No.: 70P2057
EAN: 4099891704629
MPN:
99 2442 42 04
Series: 820

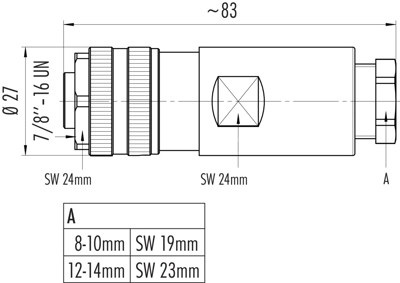

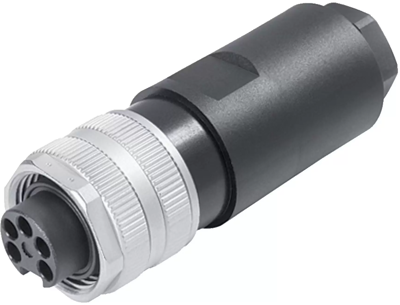

99 2442 42 04 binder Other Circular Connectors Image 1
99 2442 42 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.7044 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
24.70 € *
Price list
Quantity
Price per unit*
1 pcs.
24.7044 €
10 pcs.
23.2288 €
50 pcs.
21.8365 €
100 pcs.
20.5156 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99 2442 42 04, binder

7/8" Female cable connector, Contacts: 3+PE, 12.0-14.0 mm, unshielded, screw clamp, IP67, UL, VDE.

Technical specifications
Version jack
Cable cross-section 1.5 mm²
Pin number 3 pole + PE
Orientation straight
Contact connection screw connection
Type of locking screw locking
Cable diameter 12 to 14 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PBT
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
