99 2442 21 04 | binder
Jack, 3 pole + PE, screw connection, screw locking, straight, 99 2442 21 04
As a private customer, you can buy this item as soon as we have it back in stock.

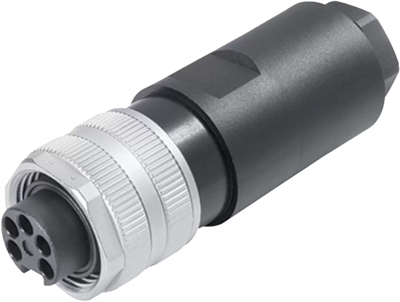

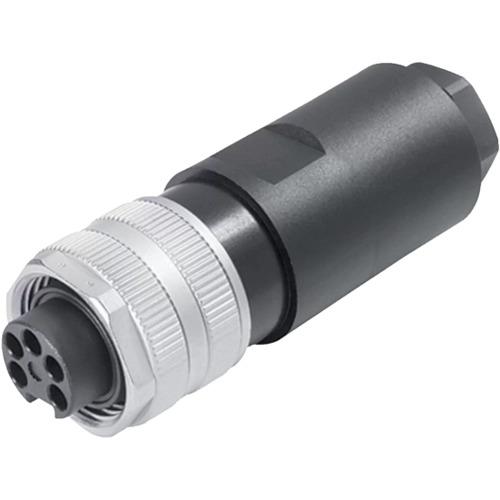

7/8" female cable connector, 99 2442 21 04, binder
Female cable connector, Contacts: 3+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL, VDE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | screw locking | |
| Version | socket | |
| Shell Material | PBT | |
| Cable diameter | 8 to 10 mm | |
| Pin number | 3 pole + PE | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Contact connection | screw connection | |
| Orientation | straight | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
