99 2440 42 03 | binder

Jack, 2 pole + PE, screw connection, screw locking, straight, 99 2440 42 03

Order No.: 70P2044
EAN: 4099891704506
MPN:
99 2440 42 03
Series: 820

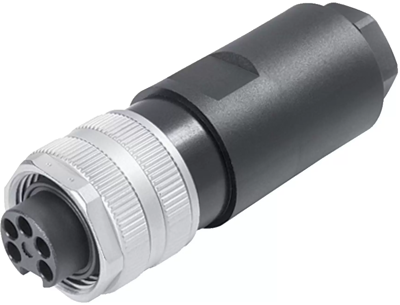

99 2440 42 03 binder Other Circular Connectors Image 1

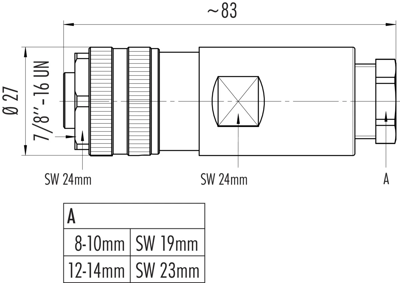

99 2440 42 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.4430 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
23.44 € *
Price list
Quantity
Price per unit*
1 pcs.
23.4430 €
10 pcs.
22.0388 €
50 pcs.
20.7060 €
100 pcs.
19.4684 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99 2440 42 03, binder

7/8" Female cable connector, Contacts: 2+PE, 12.0-14.0 mm, unshielded, screw clamp, IP67, UL, VDE.

Technical specifications
Version jack
Cable cross-section 1.5 mm²
Pin number 2 pole + PE
Orientation straight
Contact connection screw connection
Type of locking screw locking
Cable diameter 12 to 14 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PBT
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
