99 2440 12 03 | binder

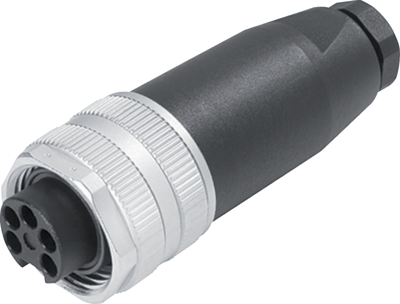

Jack, 2 pole + PE, screw connection, screw locking, straight, 99 2440 12 03
Unit Price (€ / pc.)
29.6310 € *
Available: 13 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
29.63 € *
Price list
Quantity
Price per unit*
1 pcs.
29.6310 €
10 pcs.
26.0729 €
50 pcs.
24.2879 €
150 pcs.
23.2288 €
500 pcs.
22.0388 €
*incl. VAT plus shipping costs
Subject to prior sale
Female cable connector, 99-2440-12-03, Franz Binder
7/8" Female connector, poles 2+PE, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL, VDE
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole + PE | |
| Version | jack | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
