99 2062 92 08 | binder
Jack, 8 pole, solder connection, screw locking, straight, 99 2062 92 08
Unit Price (€ / pc.)
16.4696 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
16.47 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4696 €
10 pcs.
15.3153 €
50 pcs.
14.2324 €
100 pcs.
13.2566 €
*incl. VAT plus shipping costs
Subject to prior sale
Female cable connector, 99 2062 92 08, binder

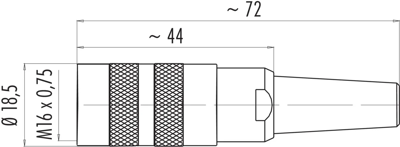

M16 IP40 Female cable connector, Contacts: 8 DIN, 6.0-8.0 mm, shieldable, solder, IP40.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Cable diameter | 6 to 8 mm | |
| Type of locking | screw locking | |
| Pin number | 8 pole | |
| contact surface | gold-plated | |
| Cable cross-section | 0.75 mm² | |
| Contact connection | solder connection | |
| Assembly | cable assembly | |
| Version | jack |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
