99 2061 20 08 | binder

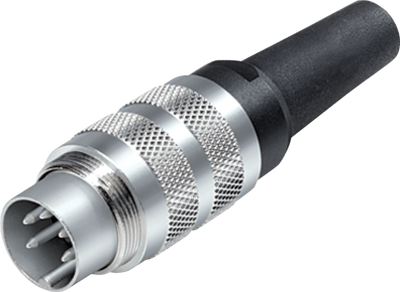

Plug, 8 pole, solder connection, screw locking, straight, 99 2061 20 08
Unit Price (€ / pc.)
16.4815 € *
Available: 9 pcs.
Total Price:
16.48 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4815 €
10 pcs.
14.5180 €
50 pcs.
13.5184 €
150 pcs.
12.9115 €
500 pcs.
12.2689 €
*incl. VAT plus shipping costs
Subject to prior sale
Male cable connector, 99-2061-20-08, Franz Binder
M16 IP40 Male connector, poles 8 DIN, 6.0-8.0 mm, shieldable, solder, IP40
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable diameter | 6 to 8 mm | |
| Type of locking | screw locking | |
| Version | plug | |
| Contact connection | solder connection | |
| Pin number | 8 pole | |
| contact surface | silver-plated | |
| Assembly | cable assembly | |
| Cable cross-section | 0.75 mm² | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
