99 2061 00 08 | binder

Plug, 8 pole, solder cup, screw locking, straight, 99 2061 00 08

Order No.: 66F194
EAN: 4099889726855
MPN:
99 2061 00 08
Series: 581

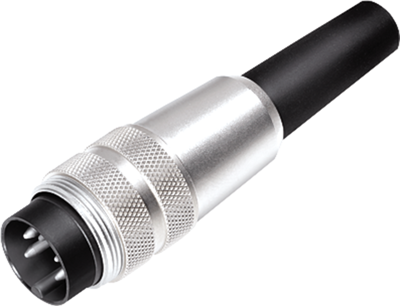

99 2061 00 08 binder Other Circular Connectors Image 1

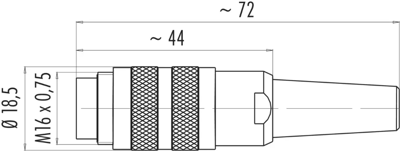

99 2061 00 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.6386 € *
Available: 8 pcs.
Leadtime: On Request **
Total Price:
10.64 € *
Price list
Quantity
Price per unit*
1 pcs.
10.6386 €
10 pcs.
9.3653 €
50 pcs.
8.7346 €
150 pcs.
8.3538 €
500 pcs.
7.9016 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector, type Binder 581.

Compatible with other brands having the same contact arrangement; Contacts: female, copper tin. Male contacts: copper zinc. Contact finish: silver-plated. Cable termination: solder terminals, max. 0.75 mm². Male/female contact carrier: PBT in accordance with UL 94 V-0. Screw interlock. Degree of protection when inserted (IEC 60529): IP 40. Test surge voltage: 550 VAC. Contact resistance: max. 5.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.

Cable plug connectors, type 581.

Rugged metal housing and guide collar made of zinc die-casting, nickel-plated with good EMC properties, for 4.0 to 6.0 mm cable entry.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-2061-00-08, 8-pole, 60 V/5.0 A

Technical specifications
Version plug
Cable cross-section 0.75 mm²
Pin number 8 pole
Orientation straight
Contact connection solder cup
Type of locking screw locking
Cable diameter 4 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material PBT
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
