99 2042 20 19 | binder

Jack, 19 pole, solder connection, screw locking, straight, 99 2042 20 19

Order No.: 70P0486
EAN: 4099891697051
MPN:
99 2042 20 19
Series: 581

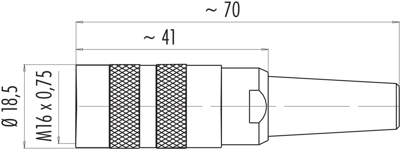

99 2042 20 19 binder Other Circular Connectors Image 1
99 2042 20 19 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
26.9178 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
26.92 € *
Price list
Quantity
Price per unit*
1 pcs.
26.9178 €
10 pcs.
25.2994 €
25 pcs.
23.7762 €
50 pcs.
22.3601 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99 2042 20 19, binder

M16 IP40 Female cable connector, Contacts: 19, 6.0-8.0 mm, shieldable, solder, IP40.

Technical specifications
Filter Property Value
Pin number 19 pole
Cable cross-section 0.25 mm²
Version jack
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Cable diameter 6 to 8 mm
Orientation straight
Type of locking screw locking
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
